check valves
axial type check valve series 100000
body brass; spool plastic PPS; seal NBR; medium temperature -20…+100°C
axial type check valve series 100001
body brass; spool plastic PPS; seal FKM; medium temperature -10…+150°C
strainer series 110100
material AISI 304; threaded connection part polyamide
axial type check valve series 227
male thread; body brass; seal FKM; medium temperature -10…+180°C
axial type check valve series 228
female/male thread; body nickel plated brass; seal NBR; pressure range 0,2...10bar; medium temperature -10…+70°C
axial type check valve series 304,CH014-V
seal FKM; medium temperature -20…+150°C; body, inner parts AISI 304; AISI 316
strainer series ST304
material AISI 304
axial type check valve series VX23
body, disc AISI 316L; spring AISI 301; seal FKM; pressure range 0,2...10bar; medium temperature -10…+150°C
axial type check valve series 316
body, inner parts AISI 316; seal PTFE; pressure range 0,1...16bar; medium temperature -30…+130°C
angle seat check valve series 1072
spring loaded; body bronze; inner parts brass/stainless steel; seal FKM; pressure range 0,1…25bar; medium temperature -10…+120°C
angle seat check valve series 4000
spring loaded; body AISI 316; inner parts AISI 316Ti/AISI 301; seal PTFE; medium temperature -20…+200°C

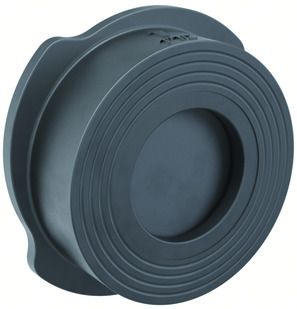

check valve series CH009
wafer type; body AISI 316; disc AISI 316L; metal sealing; medium temperature -55…+250°C

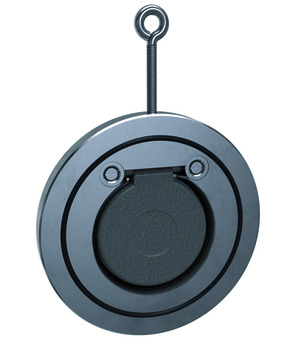

swing check valve series CS-2466/CS-2424
wafer type; reset by its own weight; body zinc plated steel; seal NBR; medium temperature -10…+120°C
swing check valve series CS-6666
wafer type; reset by its own weight; body, disc AISI 316; seal FKM; medium temperature -50…+260°C

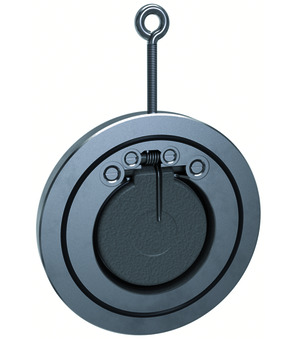

swing check valve series CM-2466/CM-2424
wafer type; reset by spring; body zinc plated steel; seal NBR; medium temperature -10…+120°C
swing check valve series CM-6666
wafer type; reset by spring; body, disc AISI 316; seal FKM; medium temperature -50…+260°C
